SG313S

Check availability

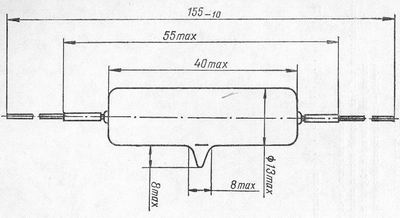

SG2S pin diagram SG2S pin diagram
Click to see in full size
NameSG313S
TypeGas stabilizer
Cathode typecold
Envelopeglass
Fillinggas
Mass, g15
Stabilized voltage, V1615-1685
Ignition voltage, V1800
Current, mA0,02-0,11
Noise, mV/1000
Ready time10sec
