SG4S

Check availability

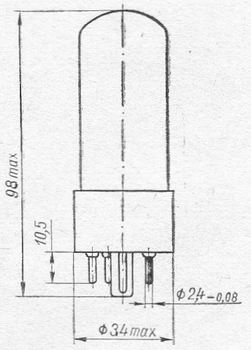

SG2S pin diagram SG2S pin diagram
Click to see in full size
NameSG4S
TypeGas stabilizer
Cathode typecold
Envelopeglass
Fillingargon-helium
Mass, g45
Stabilized voltage, V145-162
Ignition voltage, V180
Current, mA5,0-30
Voltage recurrence, V0,5
Ready time3
