NameGS11
Typetriode
Application fieldoscillation, amplification in 1-10cm band
Brief applicationHF amplification, oscillation
Cathode typeoxide, indirect heating
Envelopetitanium-ceramic
Mass5 g
Cooling methodforced air

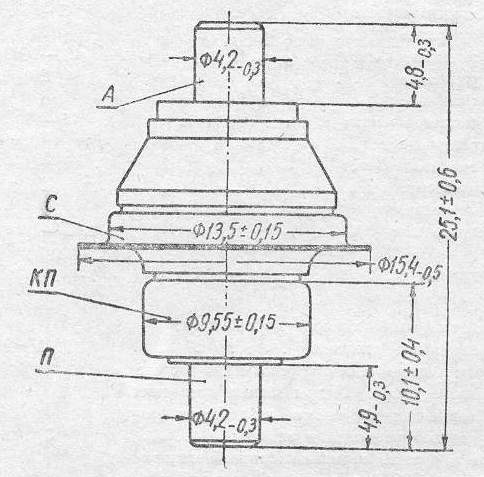

Dimensions25.1mmx15.4mm
Output power1.5 W
Gain coefficient80 to 165
Maximum operating frequency10cm
Filament voltage6.3 V
Filament current275 - 310 mA
Normal anode voltage175V
Maximum anode voltage9 kV
Mutual conductance9mA/V
