NameGS12A
Typetetrode
Application fieldRF power amplification up to 1000MHz
Brief applicationamplification
Cathode typetugsten, carbidized, direct heating
Envelopemetal-ceramic
Mass18kG
Cooling methodforced water

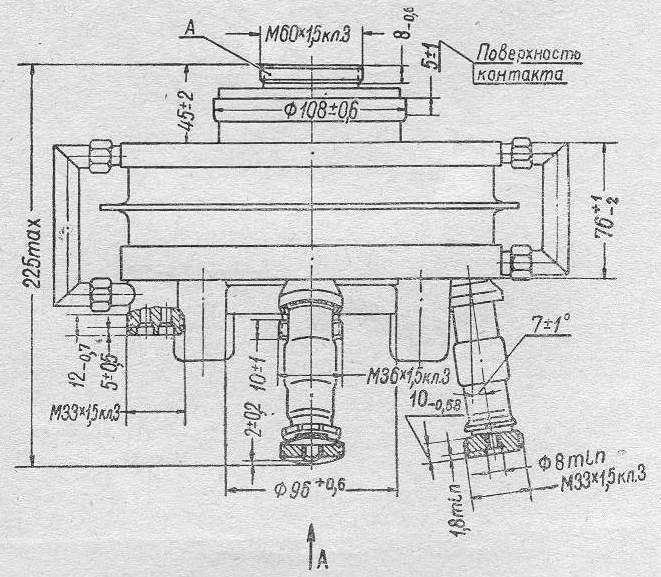

Dimensions225mm
Output power26kW
Maximum operating frequency1000MHz
Filament voltage1,35V
Filament current2150 - 2400A
Normal anode voltage2kV
Maximum anode voltage7kV
Mutual conductance170 to 240mA/V
