NameGS13
Typetriode
Application fieldoscillation, amplification and freq.multiplication in 1-10cm band
Brief applicationoscillation, amplification, freq.multiplication
Cathode typeoxide, indirect heating
Envelopetitanium-ceramic
Mass12g
Cooling methodforced air

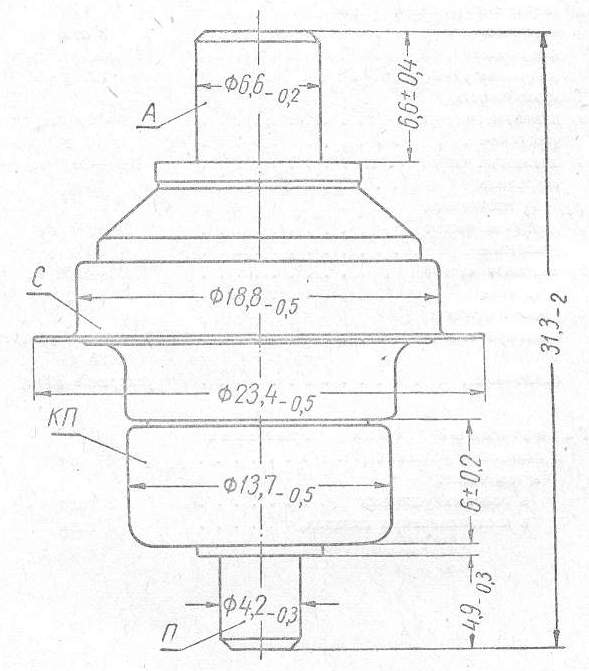

Dimensions31,3mmx23,4mm
Output power13W
Maximum operating frequency7,2cm
Filament voltage6,3V
Filament current0,415 - 0,424A
Normal anode voltage200V
Maximum anode voltage0,3kV
Mutual conductance15 to18mA/V
