NameGS14
Typetriode
Application fieldoscillation, amplification and freq.multiplication in 1-10cm band
Brief applicationHF amplification, oscillation, freq.multiplication
Cathode typeoxide, indirect heating
Envelopetitanium-ceramic
Mass20 g
Cooling methodforced air

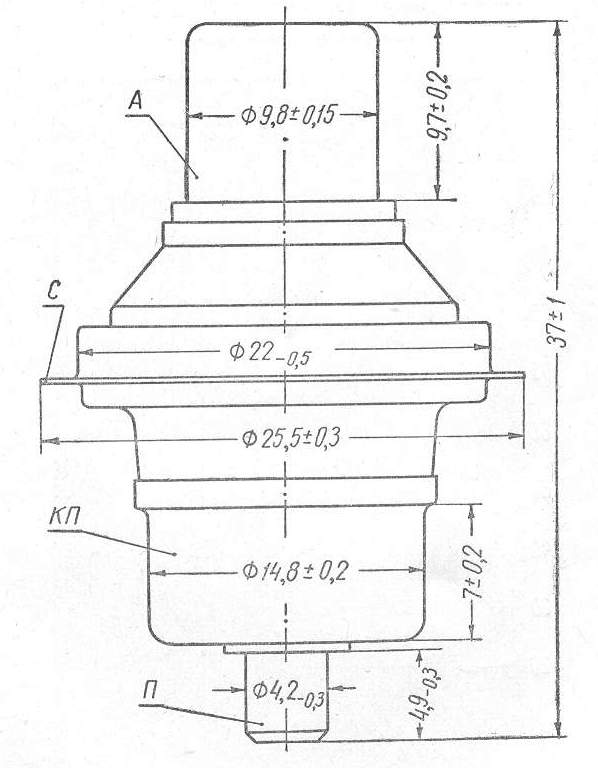

Dimensions37mmx25.5mm
Output power28 W
Maximum operating frequency7,7cm
Filament voltage6.3 V
Filament current0.66 - 0.8 A
Normal anode voltage250V
Maximum anode voltage10 kV
Mutual conductance16 to 20 mA/V
