NameGS15B
Typetetrode
Application fieldoscillation and power amplification in common grid configuration in continous mode
Brief applicationHF amplification, oscillation
Cathode typesponged-metal,.oxide, indrect heating
Envelopemetal-ceramic
Mass140 g
Cooling methodforced air

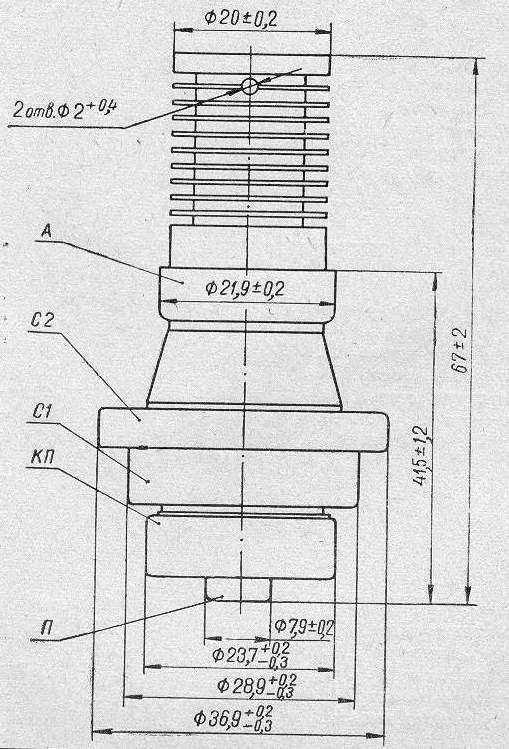

Dimensions69mmx37.1mm
Output power200 W
Maximum operating frequency26 MHz
Filament voltage6.3 V
Filament current1.85 - 2.2 A
Maximum anode voltage11 kV
Mutual conductance9 mA/V
