NameGS17B
Typetetrode
Application fieldpower amplification and UHF oscillation up to 1000MHz
Brief applicationHF amplification, oscillation
Cathode typetugsten, carbidized, direct heating
Envelopemetal-ceramic
Mass6.6 kg
Cooling methodforced air

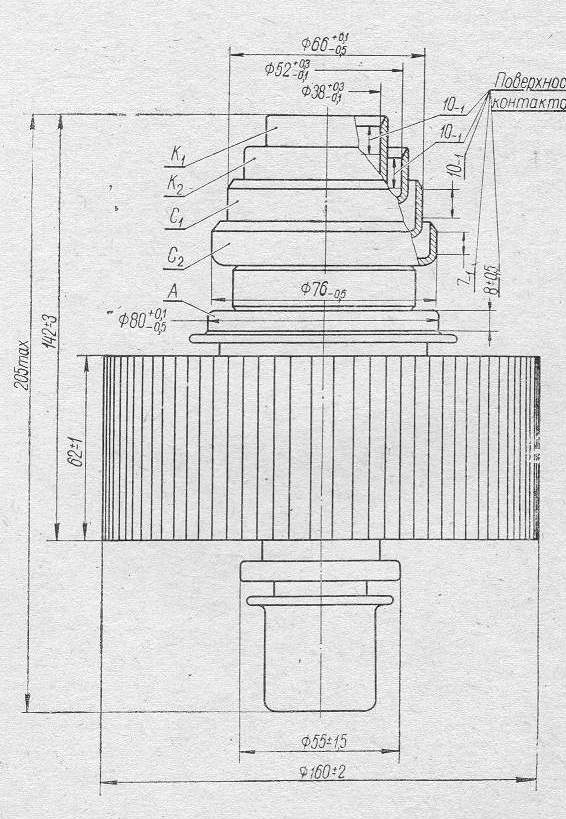

Dimensions205mmx162mm
Output power10 kW
Gain coefficient7.5 to 10.5
Maximum operating frequency1000MHz
Filament voltage3.4 V
Filament current148 - 172 A
Maximum anode voltage5,5kV
Mutual conductance55 mA/V
