GS18B

Check availability

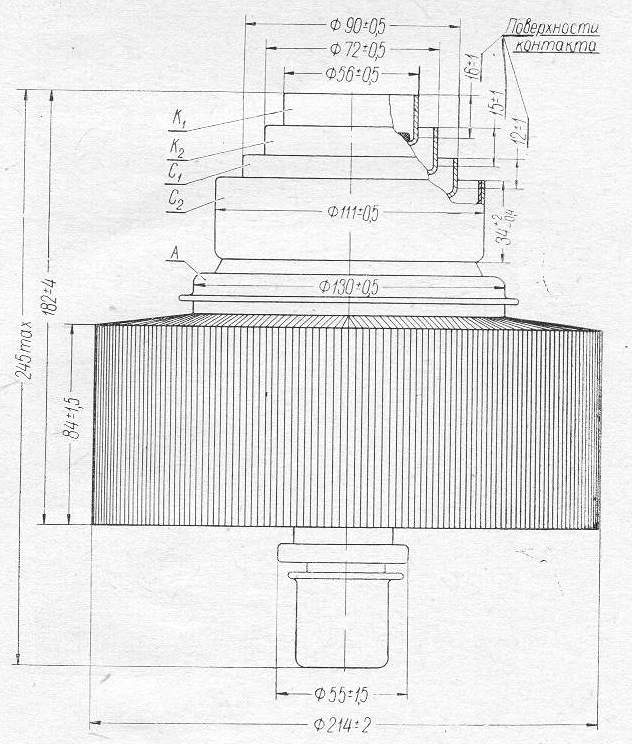

SG2S pin diagram SG2S pin diagram
Click to see in full size
NameGS18B
Typetetrode
Application fieldpower amplification up to 1000MHz
Brief applicationamplification
Cathode typetugsten, carbidized, direct heating
Envelopemetal-ceramic
Mass16kg
Cooling methodforced air
Dimensions245mmx214mm
Output power15kW
Maximum operating frequency1000MHz
Filament voltage4V
Filament current190 - 220A
Maximum anode voltage6,5kV
Mutual conductance80 to 110mA/V
