NameGS19
Typetriode
Application fieldoscillation, amplification in 15-60cm band
Brief applicationHF amplification, oscillation
Cathode typeoxide, indirect heating
Envelopetitanium-ceramic
Mass2,5g
Cooling methodair

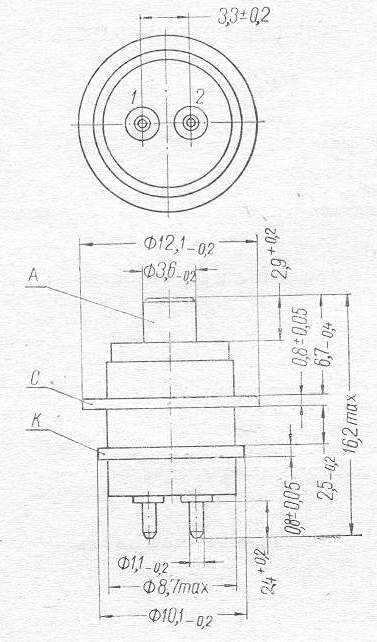

Dimensions16,2mmx12,1mm
Output power1,2W
Gain coefficient15dB
Maximum operating frequency2000MHz
Filament voltage6,3V
Filament current2,6 -3A
Normal anode voltage150V
Maximum anode voltage175V
Mutual conductance11 to 20mA/V
