GS1B

Check availability

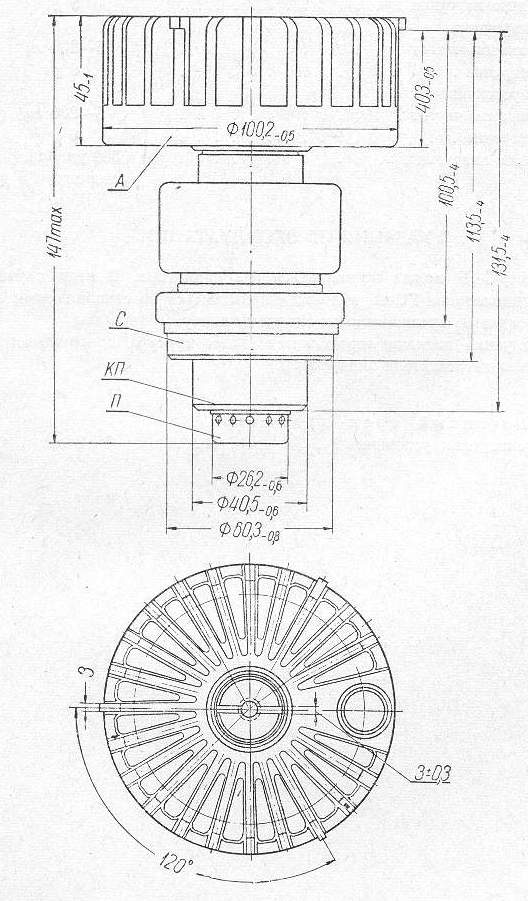

SG2S pin diagram SG2S pin diagram
Click to see in full size
NameGS1B
Typetriode
Application fieldfor application in equipment for special purposes
Cathode typeoxide, indirect heating
Envelopemetal-ceramic
Mass1,5kg
Cooling methodforced air
Output power360W
Maximum operating frequency30cm
Filament voltage12,6V
Filament current3,2+0,3A
Normal anode voltage2kV
Maximum anode voltage3kV/6kV in peak
Mutual conductance30+5mA/V
