GS20

Check availability

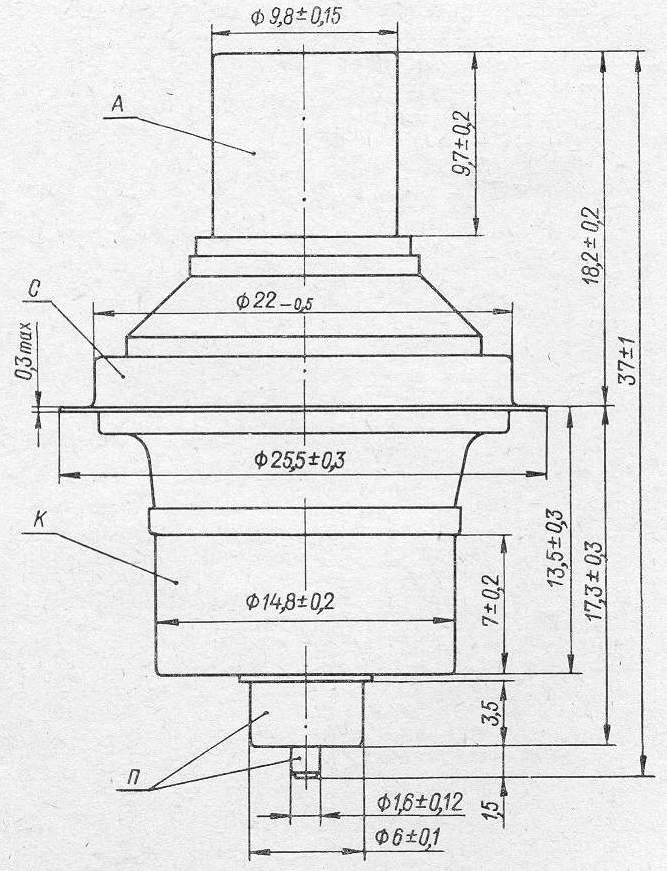

SG2S pin diagram SG2S pin diagram
Click to see in full size
NameGS20
Typetriode
Application fieldoscillation, amplification in 1-10cm band
Brief applicationHF amplification, oscillation
Cathode typeoxide, indirect heating
Envelopemetal-ceramic
Mass20g
Cooling methodair
Dimensions37mmx25,5mm
Output power10W
Maximum operating frequency7,5cm
Filament voltage6,3V
Filament current0,66 - 0,8A
Maximum anode voltage400V
Mutual conductance16 to 30mA/V
