NameGS22
Typetriode
Application fieldoscillation and freq.multiplication in 1-10cm band in continous mode
Brief applicationamplification, oscillation
Cathode typeoxide, indirect heating
Envelopemetal-ceramic
Mass15g
Cooling methodair

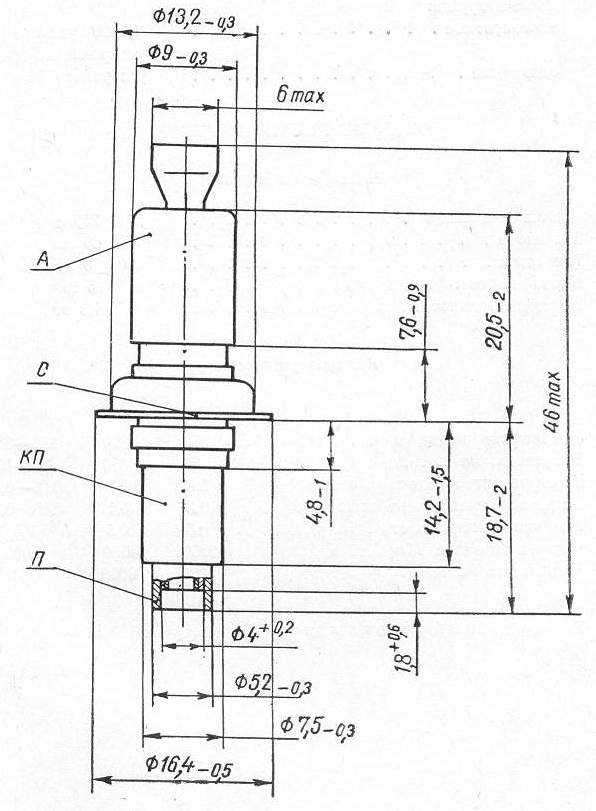

Dimensions46mmx16,4mm
Output power21W
Maximum operating frequency9000MHz
Filament voltage6,3V
Filament current0,84 - 0,86A
Normal anode voltage350V
Maximum anode voltage375V
Mutual conductance17mA/V
