NameGS23B
Typetetrode
Application fieldRF oscillation and amplification up to 1000MHz in continous mode
Brief applicationHF amplification, oscillation
Cathode typeoxide, indirect heating
Envelopemetal-ceramic
Mass1.1 kg
Cooling methodforced air

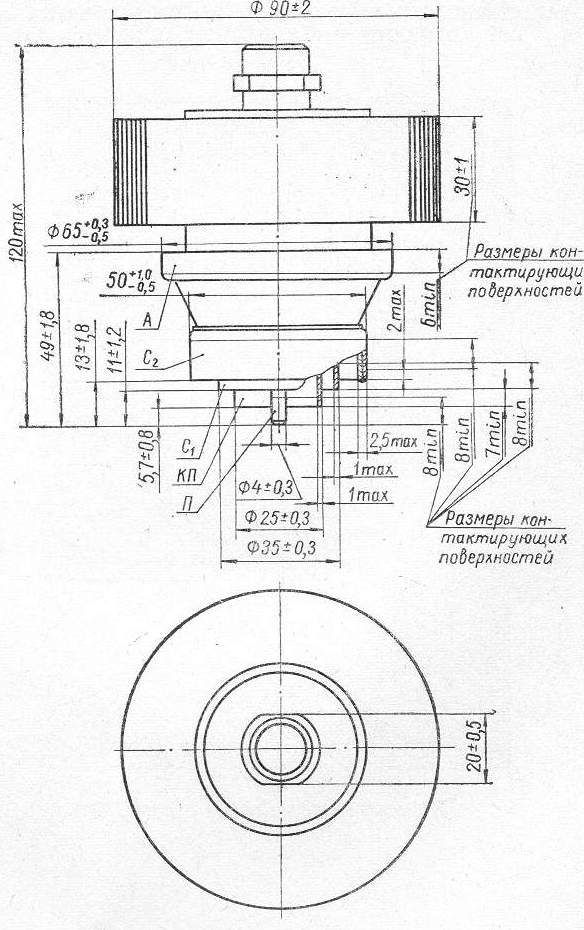

Dimensions120mmx90mm
Output power1.5 kW
Gain coefficient8
Maximum operating frequencymetric waves
Filament voltage6.3 V
Filament current5.3 - 6.1 A
Maximum anode voltage0.75 kV
Mutual conductance40 to 70 mA/V
