NameGS25
Typetriode
Application fieldoscillation, amplification and freq.multiplication in 1-10cm band
Brief applicationHF amplification, oscillation, freq.multiplication
Cathode typeoxide, indirect heating
Envelopetitanium-ceramic, miniature
Mass2g
Cooling methodair

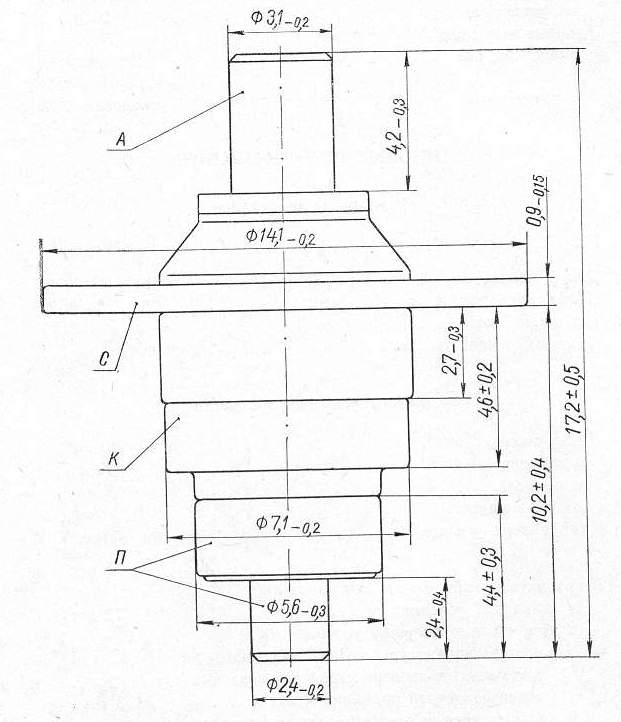

Dimensions17,2mmx14,1mm
Output power0,21W
Gain coefficient7dB
Maximum operating frequency5000MHz
Filament voltage6,3V
Filament current0,38 - 0,62A
Normal anode voltage80V
Maximum anode voltage100V
Mutual conductance5mA/B
