NameGS29B
Typetriode
Application fieldamplification and oscillation in 5-15cm band in common grid configuration
Brief applicationamplification, oscillation
Cathode typepressed-impregnated, indirect heating
Envelopemetal-ceramic
Mass50g
Cooling methodforced air

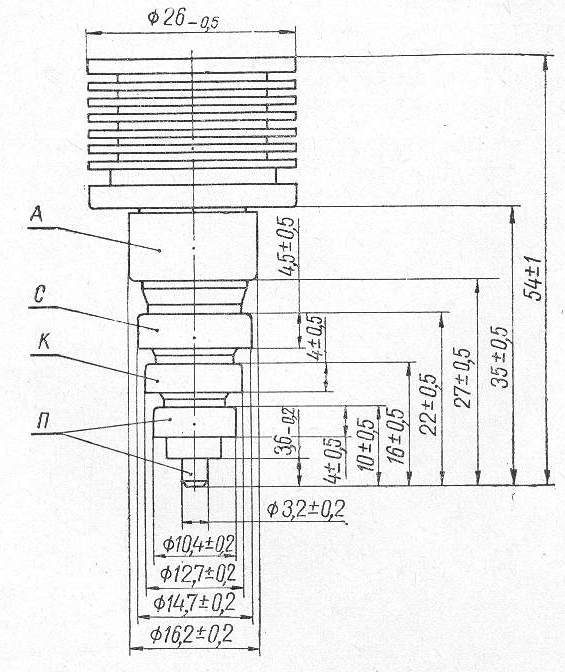

Dimensions54mmx26mm
Output power50W
Maximum operating frequency6000MHz
Filament voltage6,3V
Filament current1 - 1.2 A
Maximum anode voltage475V
Mutual conductance18mA/V
