NameGS30
Typetriode
Application fieldOscillation UHF power up to 20W,400-1500MHz in special equipment
Brief applicationHF oscillation
Cathode typeoxide, indirect heating
Envelopemetal-ceramic
Mass30 g
Cooling methodair

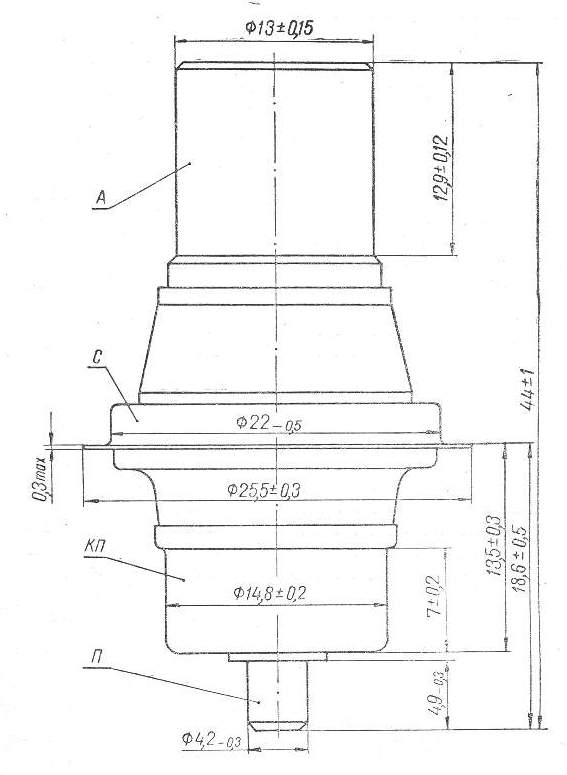

Dimensions45mmx25.8mm
Output power40 W
Maximum operating frequency1500 MHz
Filament voltage6.3 V
Filament current0.8 - 1.2 A
Maximum anode voltage1.5 kV
Mutual conductanceat least 20 mA/V
