NameGS32
Typetriode
Application fieldoscillation, amplification and freq.multiplication in 300-4000MHz band in special equipment
Brief applicationHF amplification, oscillation, freq.multiplication
Cathode typeoxide, indirect heating
Envelopetitanium-ceramic
Mass5g
Cooling methodair

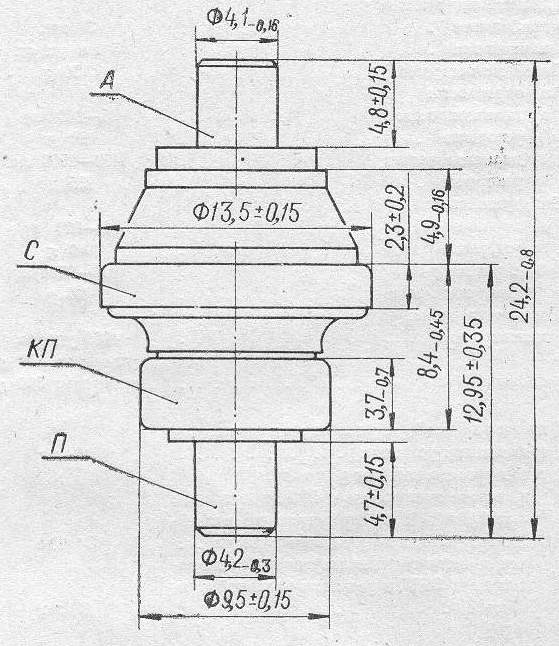

Dimensions24,2mmx13.5mm
Output power5W
Maximum operating frequency2000MHz
Filament voltage6,3V
Filament current0,28 - 0,34A
Normal anode voltage200V
Maximum anode voltage0,25kV
Mutual conductanceat least 14mA/V
