NameGS34
Typetriode
Application fieldoscillation and amplification up to 60W in continous mode and up to 12kW in pulse mode in 3000MHz ba
Brief applicationamplification, oscillation
Cathode typeoxide, indirect heating
Envelopemetal-ceramic
Mass1,4kg
Cooling methodforced air

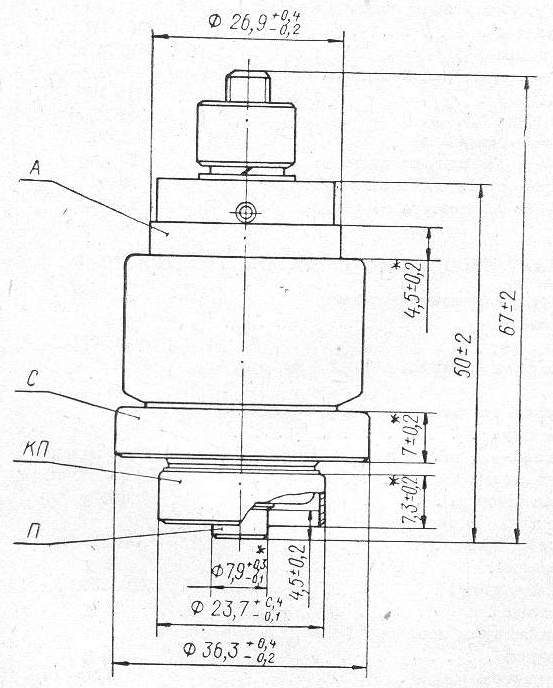

Dimensions67mmx36,3mm
Output power60W/12kW in pulse
Maximum operating frequency3280MHz
Filament voltage12,6V
Filament current0,98 - 1,18A
Maximum anode voltage2,5kV
Mutual conductance14mA/V
