NameGS38B
Typetetrode
Application fieldlinear and power amplification up to 500MHz stationery and mobile equpment
Brief applicationamplification
Cathode typeoxide, indirect heating
Envelopemetal-ceramic
Mass150g
Cooling methodforced air

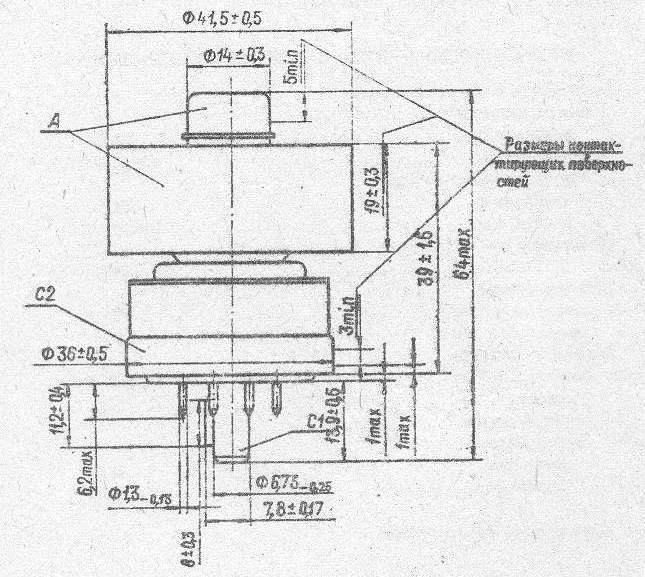

Dimensions64mmx41.5mm
Output power350W
Maximum operating frequency500MHz
Filament voltage26,5V
Filament current0,71 - 0,8A
Maximum anode voltage3,5kV
Mutual conductance14 to 28 mA/V
