GS39B

Check availability

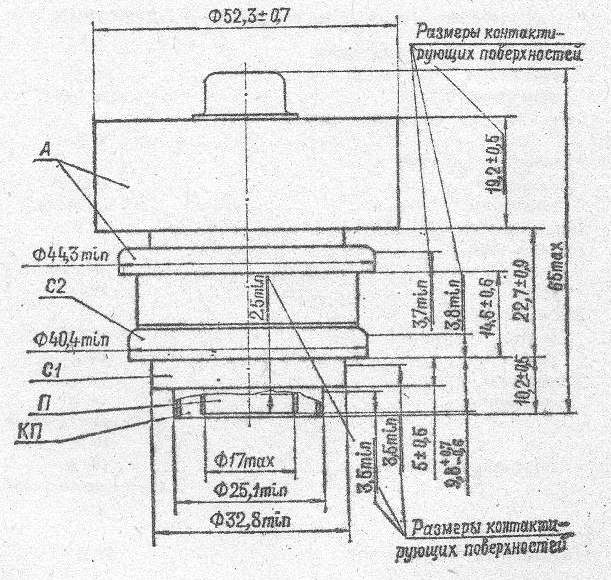

SG2S pin diagram SG2S pin diagram
Click to see in full size
NameGS39B
Typetetrode
Application fieldoscillation and power amplification in stationery and mobile equipment
Brief applicationamplification
Cathode typeoxide, indirect heating
Envelopemetal-ceramic
Mass350g
Cooling methodforced air
Dimensions65mmx52,3mm
Output power0,6kW
Maximum operating frequency750MHz
Filament voltage6,3V0,7 to 0,8A
Maximum anode voltage2,5kV/4,5kV in peak
Mutual conductance12 to 28mA/V
