K-92B

Check availability

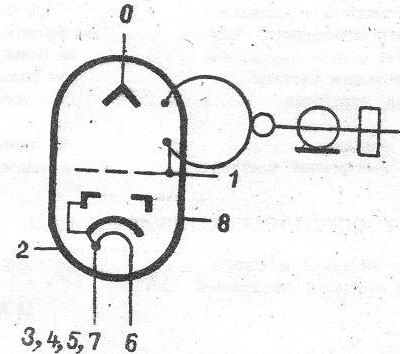

SG2S pin diagram SG2S pin diagram
Click to see in full size
NameK-92B
TypeReflex
Application fieldapplication as continous UHF generator for radiorelay communication equipment
Cathode typeOxide, indirect heating
Envelopemetal, waveguide-coaxial output
Mass2500g
Cooling methodforced air
Frequency band3500-3700MHz
Output power800mW
Tuning steepness, MHz/mA0,1
Tuning range, MHz16,5
Filament voltage, V6,3
Filament current, A1,2
Resonator voltage, V850
Reflector negative voltage, V100-600
