KIU-12A

Check availability

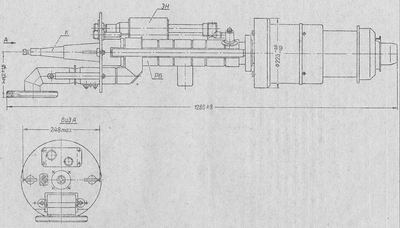

SG2S pin diagram SG2S pin diagram
Click to see in full size
NameKIU-12A
TypePulse, Amplificative
Application fieldUHF signal amplification
Cathode typeOxide, indirect heating
Envelopemetal,90x45mm waveguide output/coaxial input
Mass60kg
Cooling methodforced water
Frequency band2804-2790MHz
Output power20MW output/15kW input in pulse
Gain, dB31dB
Filament voltage, V12
Filament current, A45
Pulse anode voltage, kV300kV
