KIU-12AM

Check availability

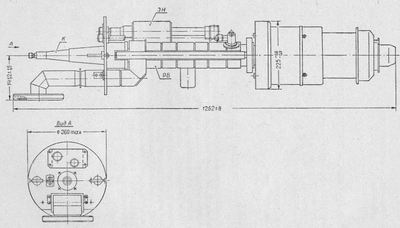

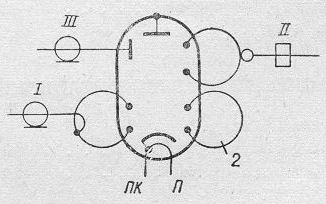

SG2S pin diagram SG2S pin diagram
Click to see in full size
NameKIU-12AM
TypePulse, Amplificative
Application fieldamplification of UHF signals to provide power UHF pulse for line accelerators to phisical or medical
Cathode typeOxide, indirect heating
Envelopemetal
Mass60kg
Cooling methodforced water
Frequency band2790-2804MHz
Output power20MW output/10kW input in pulse
Gain, dB33dB
Filament voltage, V12
Filament current, A45
Pulse anode voltage, kV300kV

See also

K-11 TypeReflex Frequency band8,25-12,0cm K-114 TypeReflex Frequency band8825-8775MHz K-12 TypeReflex Frequency band2500-3636MHz K-147 TypeReflex Frequency band7,9-13,2GHz K-15 TypeReflex Frequency band3090-5660MHz K-152 TypeReflex Frequency band32600-31680MHz K-154 TypeReflex Frequency band5,6-9,1GHz K-154A TypeReflex Frequency band8,0-9,7GHz K-162 TypeReflex Frequency band6,0-10,8GHz K-19 TypeReflex Frequency band9,174-9,524GHz
