KIU-17

Check availability

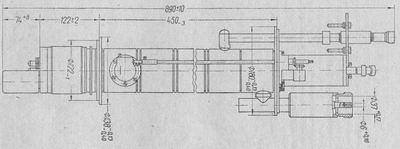

SG2S pin diagram SG2S pin diagram
Click to see in full size
NameKIU-17
TypePulse, Amplificative
Application fieldUHF signal amplification in special equipment
Cathode typeOxide, indirect heating
Envelopemetal-ceramic, coaxial input and output
Mass23kg
Cooling methodforced water
Frequency band1818MHz
Output power150kW output/100mW input
Gain, dB60dB
Filament voltage, V2,8-3,8
Filament current, A30
Pulse anode voltage, kV50kV
