KS-4A

Check availability

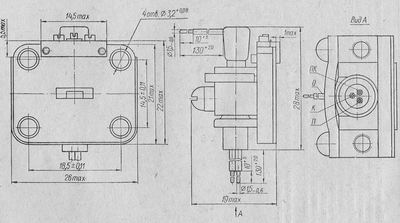

SG2S pin diagram SG2S pin diagram
Click to see in full size
NameKS-4A
TypeReflex, superminiature
Application fieldapplication as UHF generator
Cathode typeindirect heating
Envelopemetal-ceramic,5x23mm waveguide output
Mass36g
Cooling methodconductive
Frequency band9680-9720MHz
Output power35mW
Tuning steepness, MHz/mA3
Tuning range, MHz100
Filament voltage, V3
Filament current, A0,7-1,6
Resonator voltage, V85
Reflector negative voltage, V20-120
