KS-5A

Check availability

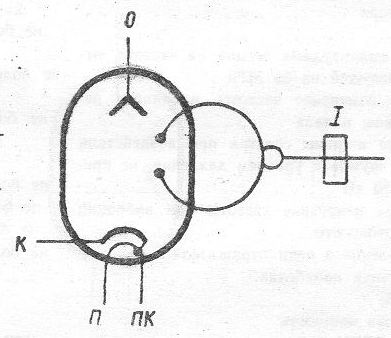

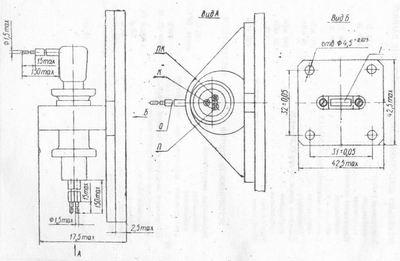

SG2S pin diagram SG2S pin diagram
Click to see in full size
NameKS-5A
TypeReflex, superminiature
Application fieldapllication in air equipment
Cathode typeindirect heating
Envelopemetal-ceramic,10x23mm waveguide output
Mass70g
Cooling methodconductive
Frequency band9315MHz
Output power35-90mW
Tuning steepness, MHz/mA4 to 7
Tuning range, MHz100
Filament voltage, V3
Filament current, A1,0-1,5A
Resonator voltage, V85
Reflector negative voltage, V35-115

See also

K-11 TypeReflex Frequency band8,25-12,0cm K-114 TypeReflex Frequency band8825-8775MHz K-12 TypeReflex Frequency band2500-3636MHz K-147 TypeReflex Frequency band7,9-13,2GHz K-15 TypeReflex Frequency band3090-5660MHz K-152 TypeReflex Frequency band32600-31680MHz K-154 TypeReflex Frequency band5,6-9,1GHz K-154A TypeReflex Frequency band8,0-9,7GHz K-162 TypeReflex Frequency band6,0-10,8GHz K-19 TypeReflex Frequency band9,174-9,524GHz
