KU-309

Check availability

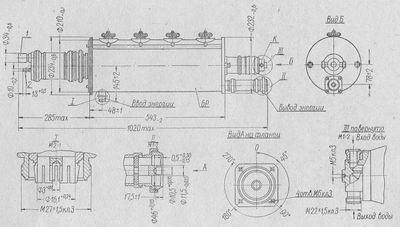

SG2S pin diagram SG2S pin diagram
Click to see in full size
NameKU-309
TypeAmlificative
Application fieldapplification as last-stage power amplifier in transmitter
Cathode typeOxide, indirect heating
Envelopemetal
Mass60kg
Cooling methodforced water
Frequency band630-470MHz
Output power3kW
Gain, dB40dB
Filament current, A32
Pulse anode voltage, kV10kV
