KU-310

Check availability

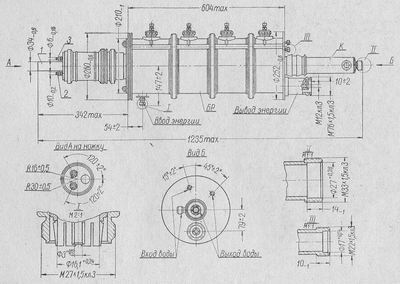

SG2S pin diagram SG2S pin diagram
Click to see in full size
NameKU-310
TypeAmlificative
Application fieldapplification as last-stage power amplifier in transmitter
Cathode typeOxide, indirect heating
Envelopemetal
Mass75kg
Cooling methodforced water
Frequency band630-470MHz
Output power15kw
Gain, dB30dB
Filament current, A45
Pulse anode voltage, kV19kV
