MI-500-1

Check availability

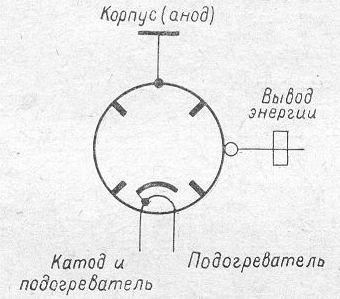

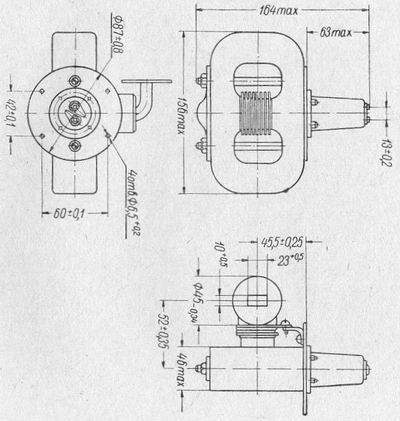

SG2S pin diagram SG2S pin diagram
Click to see in full size
NameMI-500-1
TypePulse
Application fieldapplication as UHF generator
Cathode typeoxide, indirect heating
Mass, kg3,05
Cooling methodforced air
Frequency range9550-9200MHz
Output power80W
Filament voltage, V6,3
Filament current, A1,6-2,0
Anode voltage, kV11,0-14,0
External loading agreement coefficient1,1
Pulse duration, uS1
Space factor or pulse repeating frequency1000Hz
