MI-501M

Check availability

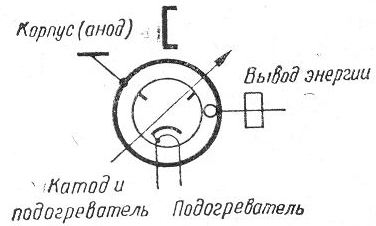

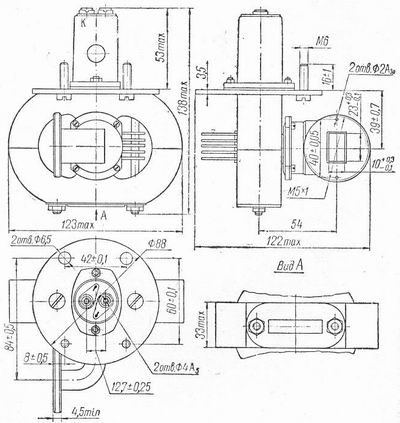

SG2S pin diagram SG2S pin diagram
Click to see in full size
NameMI-501M
TypePulse
Application fieldapplication as UHF generator
Cathode typeoxide, indirect heating
Envelopemetal
Mass, kg2,3
Cooling methodforced air
Frequency range9460-9400
Output power15kW
Frequency pulling, MHz15
Filament voltage, V6,3
Filament current, A2,0-2,5
Anode voltage, kV5,5-6,0
External loading agreement coefficient1,1
Pulse duration, uS0,5
Space factor or pulse repeating frequency1600Hz

See also

M-104 Typecontinous working Frequency range1st 933,3/2nd 896,7 M-108 Typecontinous working Frequency range35200-35500MHz M-305 Typecontinous working, electronic tuning Frequency range2140-1070MHz M-306 Typecontinous working, electronic tuning Frequency range1250-625MHz M-307M Typecontinous working, electronic tuning, magnetically shielded Frequency range4000-4400MHz M-32 Typecontinous working Frequency range9,5-12,5cm M-80 Typecontinous working Frequency range18675-18525MHz M-81 Typecontinous working Frequency range1st 2375-2425 /2nd 2325-2375MHz M-82 Typecontinous working Frequency range35520-35270MHz M-83 Typecontinous working Frequency range58700-58300MHz
