MI-507

Check availability

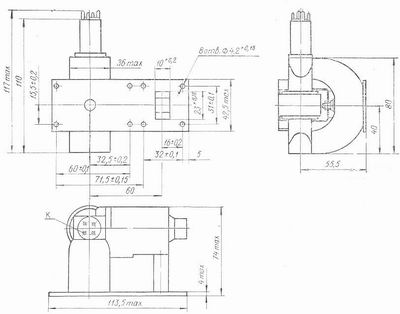

SG2S pin diagram SG2S pin diagram
Click to see in full size
NameMI-507
TypePulse
Application fieldapplication as UHF generator
Cathode typeoxide, indirect heating
Envelopemetal
Mass, kg1,2
Cooling methodNatural
Frequency range9400-9460
Output power7kW
Frequency pulling, MHz15
Tuning steepness2MHz/A
Filament voltage, V6,3
Filament current, A1,6-1,9
Anode voltage, kV5,5-6,5
External loading agreement coefficient1,1-1,5
Pulse duration, uS0,1
Space factor or pulse repeating frequency0,0004
