45LM1C

Check availability

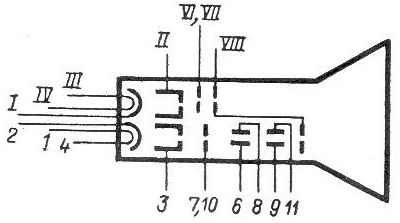

SG2S pin diagram SG2S pin diagram
Click to see in full size
Name45LM1C
ApplicationAlphanumeric image reproduction
Envelopeglass with two optical windows
Mass, g15000
Deflection typeelectromagnetic
Beam focusingelectrostatic
Colorred and green
Resolution, lines or focused line size, mm1150
Brightness, kd/sq.mred-20, green-130
Filament voltage, V6,3
Anode voltage, kV14
