45LM3C

Check availability

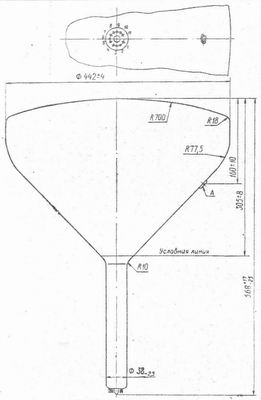

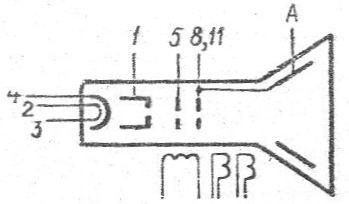

SG2S pin diagram SG2S pin diagram
Click to see in full size
Name45LM3C
Applicationin special equipment
Envelopeglass
Mass, g12000
Deflection typeelectromagnetic
Colorred and green
Resolution, lines or focused line size, mm0,45mm
Brightness, kd/sq.mred-25, green-180
Filament voltage, V6,3
Anode voltage, kV12,5

See also

11LM2G Resolution, lines or focused line size, mm0,3mm 11LM3G Resolution, lines or focused line size, mm0,3mm 11LM6V Resolution, lines or focused line size, mm0,3mm Brightness, kd/sq.m25 13LM31V Resolution, lines or focused line size, mm0,5mm Brightness, kd/sq.m60nit 13LM4V Resolution, lines or focused line size, mm0,4mm Brightness, kd/sq.m80nit 13LM56I Resolution, lines or focused line size, mm0,5mm Brightness, kd/sq.m50 13LM57D Resolution, lines or focused line size, mm0,5mm Brightness, kd/sq.m40nit 13LM58K Resolution, lines or focused line size, mm0,5mm Brightness, kd/sq.m40nit 13LM5A Resolution, lines or focused line size, mm35 13LM6S Resolution, lines or focused line size, mm0,3 Brightness, kd/sq.m50nt
