45LM3N

Check availability

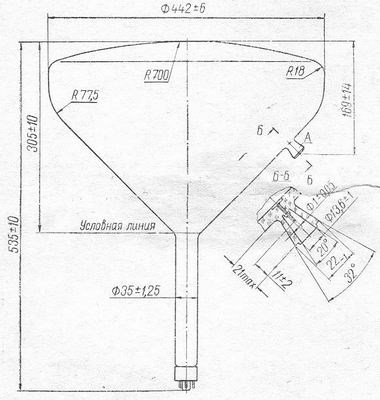

SG2S pin diagram SG2S pin diagram
Click to see in full size
Name45LM3N
ApplicationVisual registration of electrical process
Envelopeglass, side anode
Mass, g12000
Deflection typemagnetic
Beam focusingmagnetic
Coloryellow-green
Resolution, lines or focused line size, mm2000
Brightness, kd/sq.m50nit
Filament voltage, V6,3
Anode voltage, kV14
Afterglow time/color10sec
