45LM6C

Check availability

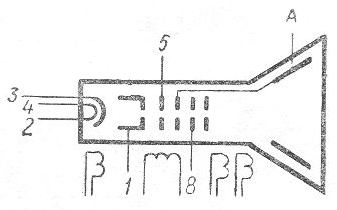

SG2S pin diagram SG2S pin diagram
Click to see in full size
Name45LM6C
ApplicationAlphanumeric and graphic image reproduction
Envelopeglass, side anode
Mass, g12000
Deflection typeelectromagnetic
Beam focusingelectromagnetic
Resolution, lines or focused line size, mm0,5mm
Brightness, kd/sq.mred-orange-8, yellow-green-70
Filament voltage, V6,3
Anode voltage, kV14
Afterglow time/colormoderate
