45LM6V

Check availability

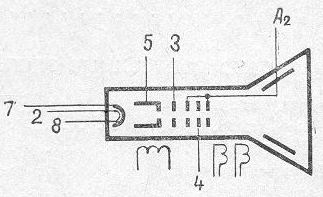

SG2S pin diagram SG2S pin diagram
Click to see in full size
Name45LM6V
ApplicationVisual registration of electrical process
Envelopeglass, side anode
Mass, g12000
Deflection typeelectromagnetic
Beam focusingelectromagnetic
Colorwhite
Resolution, lines or focused line size, mm0,35mm
Brightness, kd/sq.m110
Filament voltage, V6,3
Anode voltage, kV14
Afterglow time/colorextended
