45LM7D

Check availability

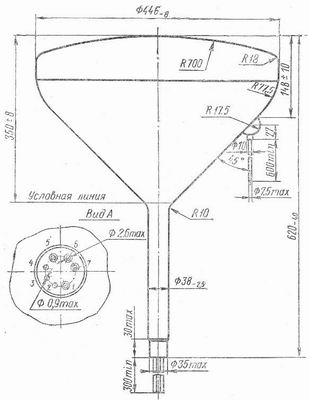

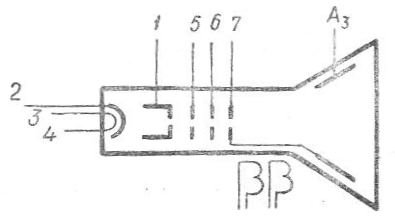

SG2S pin diagram SG2S pin diagram
Click to see in full size
Name45LM7D
ApplicationAlphanumeric image reproduction
Envelopeglass, side anode
Mass, g12000
Deflection typeelectromagnetic
Beam focusingelectrostatic
Resolution, lines or focused line size, mm0,3mm
Brightness, kd/sq.m70
Filament voltage, V6,3
Anode voltage, kV14
Afterglow time/colorextended
