50LM1V

Check availability

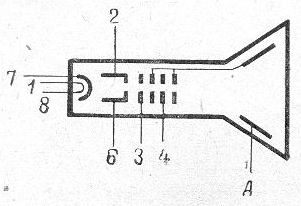

SG2S pin diagram SG2S pin diagram
Click to see in full size
Name50LM1V
ApplicationVisual registration of electrical process
Mass, g9000
Deflection degree110
Deflection typeelectromagnetic
Beam focusingelectrostatic
Colorwhite
Resolution, lines or focused line size, mm0,6mm
Brightness, kd/sq.m100
Filament voltage, V6,3
Anode voltage, kV20
Afterglow time/colorextended, yellow
