61LM4C

Check availability

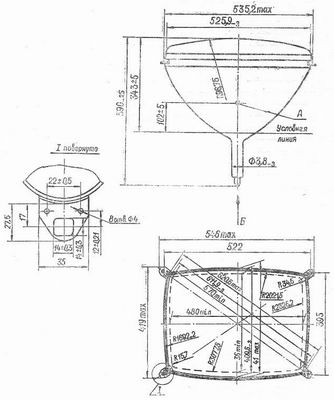

SG2S pin diagram SG2S pin diagram
Click to see in full size
Name61LM4C
ApplicationAlphanumeric and graphic image reproduction
Envelopeglass
Mass, g20000
Deflection degree90
Deflection typeelectromagnetic
Beam focusingelectromagnetic
Colorfrom red to green
Resolution, lines or focused line size, mm0,3mm
Brightness, kd/sq.mred-15, green-150
Filament voltage, V6,3
Anode voltage, kV15
Afterglow time/color0,01sec
