R-63

Check availability

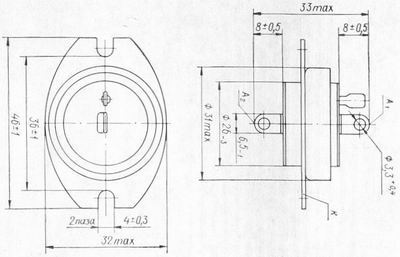

SG2S pin diagram SG2S pin diagram
Click to see in full size
NameR-63
Typeuncontrolled
Application fieldovervoltage protection
Envelopemetal-ceramic
Mass50
Spark voltage, kV0,2-0,3
Spark frequency, Hz0,1
Anode current, A1000 in pulse
Insulation resistance, MOhm200
Life, pulses200
