R-64

Check availability

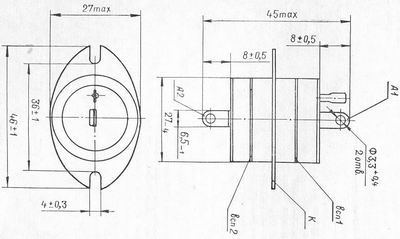

SG2S pin diagram SG2S pin diagram
Click to see in full size
NameR-64
Typeuncontrolled
Application fieldovervoltage protection
Envelopemetal-ceramic
Mass60
Spark voltage, kV0,6-0,9
Spark frequency, Hz0,1
Anode current, A1000 in pulse
Insulation resistance, MOhm200
Pulse duration, uS250
Life, pulses200
