R-71

Check availability

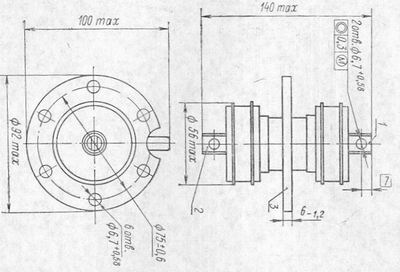

SG2S pin diagram SG2S pin diagram
Click to see in full size
NameR-71
Application fieldsymmetrical lines protection
Envelopeglass
Spark voltage, kV0,18-0,28
Spark frequency, Hz1
Anode current, A3000 in pulse
Insulation resistance, MOhm100
Pulse duration, uS25000
Life, pulses20
