R-81

Check availability

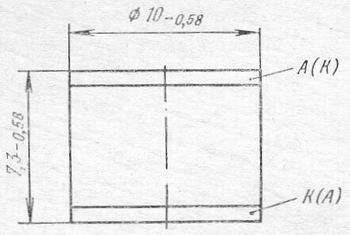

SG2S pin diagram
Click to see in full size
NameR-81
Typeuncontrolled
Application fieldcommunication lines and equipment protection
Envelopemetal-ceramic
Mass3
Spark voltage, kV0,23-0,3
Anode current, A5000 in pulse
Insulation resistance, MOhm1000
Pulse duration, uS20
Life, pulses20

See also

R-10 Spark voltage, kV1,35-1,65 R-12 Spark voltage, kV0,128-0,192 R-18 R-18-1 R-21 Spark voltage, kV1,05-2,0 R-22 Spark voltage, kV1,9-2,5 R-23 Spark voltage, kV0,06-0,24 R-24 Spark voltage, kV2,0-5,5 R-26 Spark voltage, kV2,6-3,1 R-27 Spark voltage, kV0,31-0,39
