R-85

Check availability

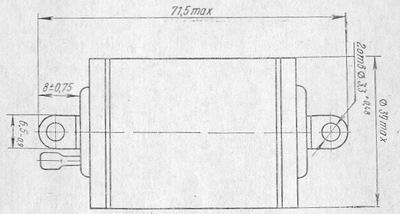

SG2S pin diagram SG2S pin diagram
Click to see in full size
NameR-85
Typeuncontrolled
Application fieldapllication in X-ray equipment
Envelopemetal-ceramic
Mass115
Spark voltage, kV9,0-11,0
Spark frequency, Hz5
Commutated power, kW0,062
Anode current, A2500 in pulse
Insulation resistance, MOhm500
Life, pulses1*10e6
