TGU1-8/15

Check availability

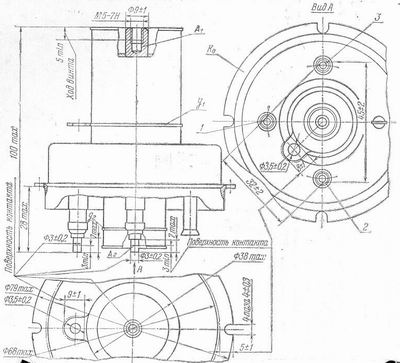

SG2S pin diagram SG2S pin diagram
Click to see in full size
NameTGU1-8/15
Applicationin modulator
Envelopemetal-ceramic
Mass400
Frequency, Hz500
Filament voltage, V6,3
Pulse anode current, A8
Average anode current, mA30
Direct and reverse voltage, kV15
Anode current pulse duration, uS15
