6ZH33A-V

Check availability

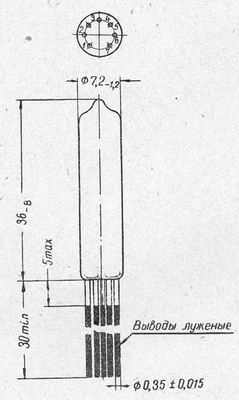

SG2S pin diagram SG2S pin diagram
Click to see in full size
Name6ZH33A-V
TypeHF pentode, hi-durable
ApplicationHF voltage amplification
Cathode typeoxide, indirect heating
Envelopeglass, miniature
Mass, g2,5
Socket typeflexible
Filament voltage, V6,3
Filament current, A0,115-0,14
Anode voltage, V120
Anode current, A0,005-0,01
Anode power, W1,3
Grid2 voltage, V100
Reverse grid current, uA0,1
Steepness, mA/V3,3-5,7
Microphonic noise, mV150
