6ZH38P-EV

Check availability

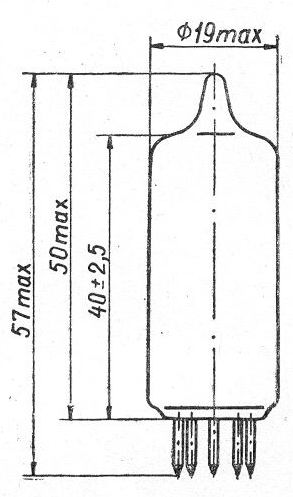

SG2S pin diagram SG2S pin diagram
Click to see in full size
Name6ZH38P-EV
TypeHF pentode
Applicationwide-band voltage amplification up to 300MHz
Cathode typeoxide, indirect heating
Envelopeglass, miniature
Mass, g15
Socket typersh4
Filament voltage, V6,3
Filament current, A0,17-0,21
Anode voltage, V150
Anode current, A0,008-0,014
Anode power, W3
Grid2 voltage, V100
Reverse grid current, uA0,3
Steepness, mA/V7,6-13,6
Microphonic noise, mV100
