6Zh44P

Check availability

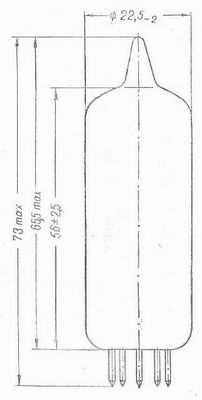

SG2S pin diagram SG2S pin diagram
Click to see in full size
Name6Zh44P
TypePenthode
Applicationapplication in wide-band IF amplifiers
Cathode typeoxide, indirect heating
Envelopeglass, miniature
Mass, g15
Socket typersh8
Filament voltage, V6,3
Filament current, A0,6
Anode voltage, V150
Anode current, A0,02-0,032
Anode power, W4,5
Grid1 voltage, V18
Grid3 voltage, V150
Reverse grid current, uA1
Steepness, mA/V20,0-32,0
