6Zh51P

Check availability

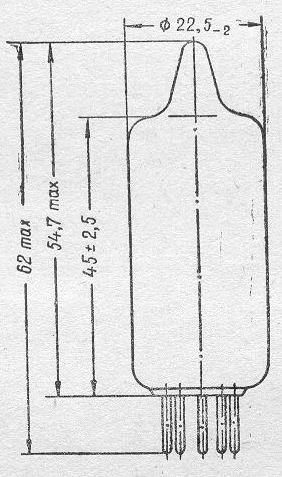

SG2S pin diagram SG2S pin diagram
Click to see in full size
Name6Zh51P
TypeHF pentode
Applicationapplication in wide-band IF amplifiers
Cathode typeoxide, indirect heating
Envelopeglass, miniature
Mass, g18
Socket typersh8
Filament voltage, V6,3
Filament current, A0,275-0,325
Anode voltage, V200
Anode current, A0,006-0,011
Anode power, W2,5
Grid2 voltage, V200
Reverse grid current, uA0,5
Steepness, mA/V11,5-19,5
